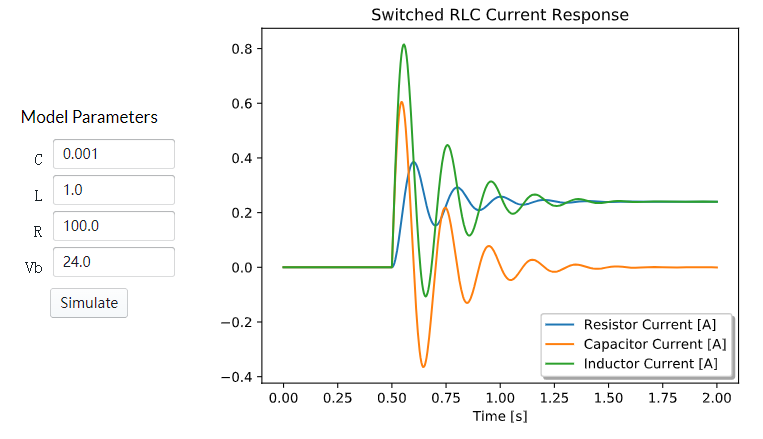

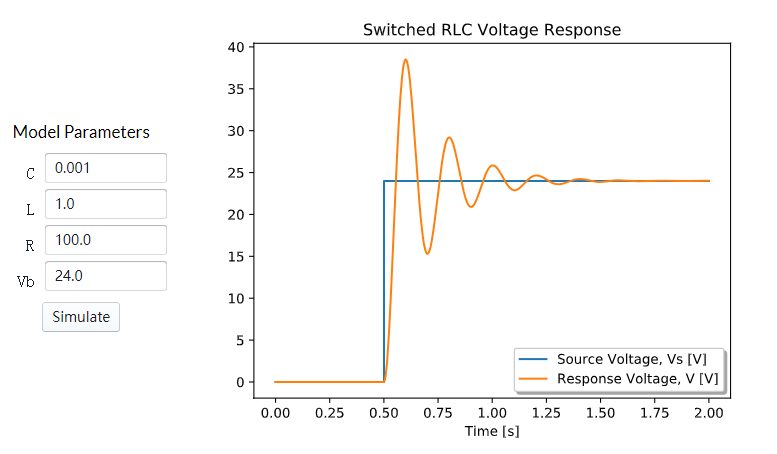

model SwitchedRLC "An RLC circuit with a switch"
  type Voltage=Real(unit="V");
  type Current=Real(unit="A");
  type Resistance=Real(unit="Ohm");
  type Capacitance=Real(unit="F");
  type Inductance=Real(unit="H");
  parameter Voltage Vb=24 "Battery voltage";
  parameter Inductance L = 1;
  parameter Resistance R = 100;
  parameter Capacitance C = 1e-3;
  Voltage Vs;
  Voltage V;
  Current i_L;
  Current i_R;
  Current i_C;
equation
  Vs = if time>0.5 then Vb else 0;
  i_R = V/R;
  i_C = C*der(V);
  i_L=i_R+i_C;
  L*der(i_L) = (Vs-V);
end SwitchedRLC;
