TTFT（Time To First Token）: 用户发出请求到收到第一个 token 的时间
TPOT（Time Per Output Token）: 每个 token 生成的平均时间
End-to-End Latency: 从请求发出到完整响应完成的总时间

# Prometheus 中记录延迟的 Histogram 配置
# 在 vLLM 指标中自动暴露
# vllm_e2e_request_latency_seconds_bucket
# vllm_time_to_first_token_seconds_bucket
# vllm_time_per_output_token_seconds_bucket

# Grafana 面板中计算 P99：
# histogram_quantile(0.99, rate(vllm_time_to_first_token_seconds_bucket[5m]))

# prometheus-values.yaml
server:
  global:
    scrape_interval: 15s
    evaluation_interval: 15s
  extraScrapeConfigs: |
    # 采集 vLLM 指标
    - job_name: 'vllm'
      kubernetes_sd_configs:
      - role: pod
      relabel_configs:
      - source_labels: [__meta_kubernetes_pod_label_app]
        action: keep
        regex: vllm
      - source_labels: [__address__]
        action: replace
        regex: (.+):8000
        replacement: ${1}:8000
        target_label: __address__
      metrics_path: /metrics

    # 采集 NVIDIA DCGM 指标
    - job_name: 'dcgm'
      kubernetes_sd_configs:
      - role: pod
      relabel_configs:
      - source_labels: [__meta_kubernetes_pod_label_app]
        action: keep
        regex: dcgm-exporter
      metrics_path: /metrics

    # 采集 K8s 节点指标
    - job_name: 'node-exporter'
      kubernetes_sd_configs:
      - role: pod
      relabel_configs:
      - source_labels: [__meta_kubernetes_pod_label_app_kubernetes_io_name]
        action: keep
        regex: node-exporter

{
  "dashboard": {
    "title": "LLM Inference Service",
    "panels": [
      {
        "title": "P99 TTFT",
        "targets": [{
          "expr": "histogram_quantile(0.99, rate(vllm_time_to_first_token_seconds_bucket[5m]))"
        }],
        "thresholds": [
          {"value": 0.4, "color": "yellow"},
          {"value": 0.8, "color": "red"}
        ]
      },
      {
        "title": "GPU Utilization",
        "targets": [{
          "expr": "avg(DCGM_FI_DEV_GPU_UTIL) by (gpu)"
        }]
      },
      {
        "title": "GPU Memory Usage",
        "targets": [{
          "expr": "DCGM_FI_DEV_FB_USED / (DCGM_FI_DEV_FB_USED + DCGM_FI_DEV_FB_FREE) * 100"
        }]
      },
      {
        "title": "Request Queue Length",
        "targets": [{
          "expr": "sum(vllm_num_requests_waiting)"
        }],
        "thresholds": [
          {"value": 10, "color": "yellow"},
          {"value": 50, "color": "red"}
        ]
      },
      {
        "title": "Tokens/sec per GPU",
        "targets": [{
          "expr": "rate(vllm_generation_tokens_total[1m])"
        }]
      }
    ]
  }
}

# vLLM 启用 OpenTelemetry（vLLM 内置支持）
from vllm.entrypoints.openai.api_server import app
from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.exporter.jaeger.thrift import JaegerExporter

trace.set_tracer_provider(TracerProvider())
trace.get_tracer_provider().add_span_processor(
    BatchSpanProcessor(
        JaegerExporter(
            agent_host_name="jaeger-collector.monitoring",
            agent_port=6831,
        )
    )
)

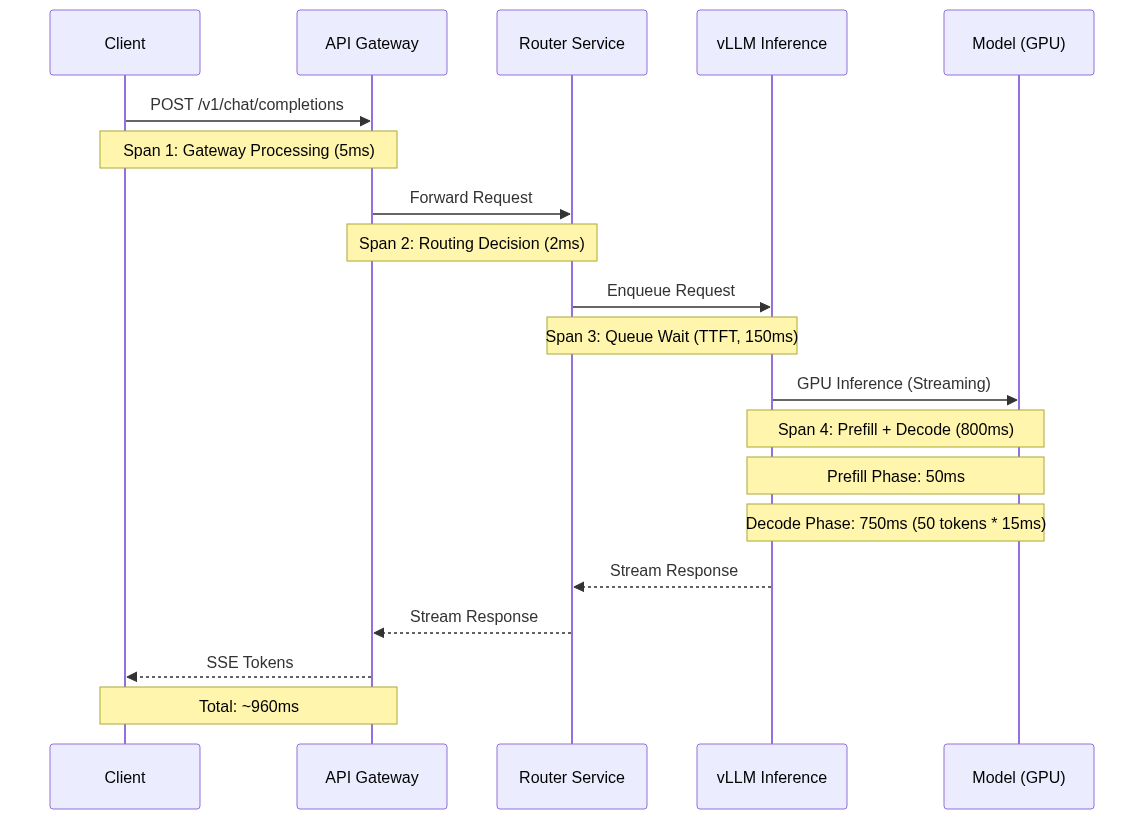

# 关键 Span 定义
# - vllm.handle_request: 完整请求处理
# - vllm.scheduler.schedule: 调度决策
# - vllm.worker.execute_model: GPU 推理
# - vllm.engine.add_request: 请求入队

# loki-values.yaml
loki:
  config:
    limits_config:
      max_line_size: 65536       # 单行最大 64KB（适应长 prompt）
      max_query_series: 1000
    schema_config:
      configs:
      - from: 2024-01-01
        store: boltdb-shipper
        object_store: s3
        schema: v12
        index:
          prefix: loki_index_
          period: 24h

# Promtail / FluentBit 采集配置
fluent-bit:
  config:
    service: |
      [SERVICE]
        Flush 1
        Log_Level info
    pipeline: |
      [INPUT]
        Name tail
        Path /var/log/containers/*vllm*.log
        Parser docker
        Tag kube.*
        Mem_Buf_Limit 50MB

      [FILTER]
        Name kubernetes
        Match kube.*

      [OUTPUT]
        Name loki
        Match kube.*
        Host loki.monitoring
        Port 3100

{
  "timestamp": "2026-05-11T10:30:45.123Z",
  "level": "info",
  "service": "vllm",
  "pod": "vllm-llm-5d8f7b6c4-xk9m2",
  "model": "Qwen2.5-72B-Instruct-AWQ",
  "request_id": "req-abc123",
  "trace_id": "0123456789abcdef",
  "event": "request_completed",
  "prompt_tokens": 512,
  "completion_tokens": 256,
  "ttft_ms": 145,
  "total_latency_ms": 2340,
  "gpu_id": 0,
  "status": "success"
}

# alertmanager-rules.yaml
groups:
- name: llm-inference
  rules:
  # 1. 延迟告警（最核心）
  - alert: HighTTFTP99
    expr: histogram_quantile(0.99, rate(vllm_time_to_first_token_seconds_bucket[5m])) > 0.8
    for: 2m
    labels:
      severity: warning
    annotations:
      summary: "TTFT P99 过高 ({{ $value | humanizeDuration }})"
      description: "用户感知明显延迟，检查 GPU 利用率和队列长度"

  - alert: CriticalTTFTP99
    expr: histogram_quantile(0.99, rate(vllm_time_to_first_token_seconds_bucket[2m])) > 2.0
    for: 1m
    labels:
      severity: critical
    annotations:
      summary: "TTFT P99 严重超标"
      description: "服务可能异常，立即排查"

  # 2. GPU OOM 告警
  - alert: GPUMemoryNearFull
    expr: DCGM_FI_DEV_FB_USED / (DCGM_FI_DEV_FB_USED + DCGM_FI_DEV_FB_FREE) * 100 > 95
    for: 1m
    labels:
      severity: critical
    annotations:
      summary: "GPU 显存即将耗尽 ({{ $value }}%)"
      description: "Pod {{ $labels.pod }} GPU {{ $labels.gpu }} 显存使用率超过 95%"

  # 3. GPU 温度告警
  - alert: GPUTemperatureHigh
    expr: DCGM_FI_DEV_GPU_TEMP > 85
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "GPU 温度过高 ({{ $value }} 摄氏度)"

  # 4. GPU 硬件错误告警
  - alert: GPUXidError
    expr: increase(DCGM_FI_DEV_XID_ERRORS[5m]) > 0
    for: 0m
    labels:
      severity: critical
    annotations:
      summary: "GPU Xid Error 检测"
      description: "GPU {{ $labels.gpu }} 发生硬件级错误 Xid={{ $value }}"

  # 5. 请求队列堆积
  - alert: RequestQueueBuilding
    expr: sum(vllm_num_requests_waiting) > 50
    for: 3m
    labels:
      severity: warning
    annotations:
      summary: "请求队列堆积 ({{ $value }} 个请求排队)"

  # 6. 错误率告警
  - alert: HighErrorRate
    expr: |
      sum(rate(vllm_request_success_total{status="error"}[5m]))
      /
      sum(rate(vllm_request_success_total[5m]))
      > 0.05
    for: 2m
    labels:
      severity: critical
    annotations:
      summary: "请求错误率超过 5%"

  # 7. KV Cache 饱和
  - alert: KVCacheSaturation
    expr: avg(vllm_gpu_cache_usage_perc) > 0.9
    for: 2m
    labels:
      severity: warning
    annotations:
      summary: "KV Cache 使用率超过 90%"
